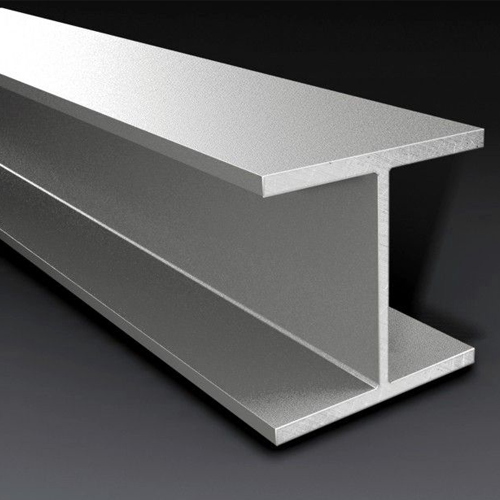

HEA-HEB DEMİRİ
-1
| Bölüm | Ebat (mm) |
G-birim
Ağırlık
(kg/m) |
h: yükseklik (mm) |
b: Genişlik (mm) |
tw:Body Kalınlık (mm) |
tf Fanş Kalınlık (mm) |
r: İç Köşe yarıçapı (mm) |
çubuk
ağırlık
|
|---|---|---|---|---|---|---|---|---|
| HEA | 100 | 16,7 | 96 | 100 | 5,0 | 8,0 | 12 | 202 |
| HEA | 120 | 19,9 | 114 | 120 | 5,0 | 8,0 | 12 | 241 |
| HEA | 140 | 24,7 | 133 | 140 | 5,5 | 8,5 | 12 | 299 |
| HEA | 160 | 30,4 | 152 | 160 | 6,0 | 9,0 | 15 | 368 |
| HEA | 180 | 35,5 | 171 | 180 | 6,0 | 9,5 | 15 | 430 |
| HEA | 200 | 42,3 | 190 | 200 | 6,5 | 10,0 | 18 | 512 |
| HEA | 220 | 50,5 | 210 | 220 | 7,0 | 11,0 | 18 | 611 |
| HEA | 240 | 60,3 | 230 | 240 | 7,5 | 12,0 | 21 | 730 |
| HEA | 260 | 68,2 | 250 | 260 | 7,5 | 12,5 | 24 | 825 |
| HEA | 2S0 | 76,4 | 270 | 280 | 8,0 | 13,0 | 24 | 924 |
| HEA | 300 | 88,3 | 290 | 300 | 3,5 | 14.0 | 27 | 1068 |
| HEA | 320 | 97,6 | 310 | 300 | 9,0 | 15,5 | 27 | 1181 |
| HEA | 340 | 105,0 | 330 | 300 | 9,5 | 16,5 | 27 | 1271 |
| HEA | 360 | 112,0 | 350 | 300 | 10,0 | 17,5 | 27 | 1355 |
| HEA | 400 | 125,0 | 390 | 300 | 11,0 | 19,0 | 27 | 1513 |
| HEA | 450 | 140,0 | 440 | 300 | 11,5 | 21,0 | 27 | 1694 |
| HEA | 500 | 155,0 | 490 | 300 | 12,0 | 23,0 | 27 | 1876 |
| HEA | 550 | 166,0 | 540 | 300 | 12,5 | 24,0 | 27 | 2009 |
| HEA | 600 | 178,0 | 590 | 300 | 13,0 | 25,0 | 27 | 2154 |
| HEB | 100 | 20,4 | 100 | 100 | 6,0 | 10,0 | 12 | 247 |
| HEB | 120 | 26,7 | 120 | 120 | 6.5 | 11,0 | 12 | 323 |
| HEB | 140 | 33,7 | 140 | 140 | 7,0 | 12,0 | 12 | 408 |
| HEB | 160 | 42,6 | 160 | 160 | 8,0 | 13,0 | 15 | 515 |
| HEB | 180 | 51,2 | 180 | 180 | 8,5 | 14,0 | 15 | 620 |
| HEB | 200 | 61,3 | 200 | 200 | 9,0 | 15,0 | 18 | 742 |
| HEB | 220 | 71,5 | 220 | 220 | 9,5 | 16,0 | 18 | 865 |
| HEB | 240 | 83,2 | 240 | 240 | 10,0 | 17,0 | 21 | 1007 |
| HEB | 260 | 93,0 | 260 | 260 | 10,0 | 17,5 | 24 | 1125 |
| HEB | 280 | 103,0 | 280 | 280 | 10,5 | 18,0 | 24 | 1246 |
| HEB | 300 | 117,0 | 300 | 300 | 11,0 | 19,0 | 27 | 1416 |
| HEB | 320 | 127,0 | 320 | 300 | 11,5 | 20,5 | 27 | 1537 |
| HEB | 340 | 134,0 | 340 | 300 | 12,0 | 21,5 | 27 | 1621 |
| HEB | 360 | 142,0 | 360 | 300 | 12,5 | 22,5 | 27 | 1718 |
| HEB | 400 | 155,0 | 400 | 300 | 13,5 | 24,0 | 27 | 1876 |
| HEB | 450 | 171,0 | 450 | 300 | 14,0 | 26,0 | 27 | 2069 |
| HEB | 500 | 187,0 | 500 | 300 | 14,5 | 28,0 | 27 | 2263 |
| HEB | 550 | 199,0 | 550 | 300 | 15,0 | 29,0 | 27 | 2408 |
| HEB | 600 | 212,0 | 600 | 300 | 15,5 | 30,0 | 27 | 2565 |
| IPE | 100 | 8,1 | 100 | 55 | 4,1 | 5,7 | 7 | 98 |
| IPE | 120 | 10,4 | 120 | 64 | 4,4 | 6,3 | 7 | 126 |
| IPE | 140 | 12,9 | 140 | 73 | 4,7 | 6,9 | 7 | 156 |
| IPE | 160 | 15,8 | 160 | 82 | 5,0 | 7,4 | 9 | 191 |
| IPE | 180 | 18,8 | 180 | 91 | 5,3 | 8,0 | 9 | 227 |
| IPE | 200 | 22,4 | 200 | 100 | 5,6 | 8,5 | 12 | 271 |
| IPE | 220 | 26,2 | 220 | 110 | 5,9 | 9,2 | 12 | 317 |
| IPE | 240 | 30,7 | 240 | 120 | 6.2 | 9,8 | 15 | 371 |
| IPE | 270 | 36,1 | 270 | 135 | 6,6 | 10,2 | 15 | 437 |
| IPE | 300 | 42,2 | 300 | 150 | 7.1 | 10,7 | 15 | 511 |
| IPE | 330 | 49,1 | 330 | 160 | 7.5 | 11,5 | 18 | 594 |
| IPE | 360 | 57,1 | 360 | 170 | 8,0 | 12,7 | 18 | 691 |
| IPE | 400 | 66,3 | 400 | 180 | 8,6 | 13,5 | 21 | 802 |
| IPE | 450 | 77,6 | 450 | 190 | 9,4 | 14,6 | 21 | 939 |
| IPE | 500 | 90,7 | 500 | 200 | 10,2 | 16,0 | 21 | 1097 |
| IPE | 550 | 106,0 | 550 | 210 | 11,1 | 17,2 | 24 | 1283 |
| IPE | 600 | 122,0 | 600 | 220 | 12,0 | 19,0 | 24 | 1476 |
